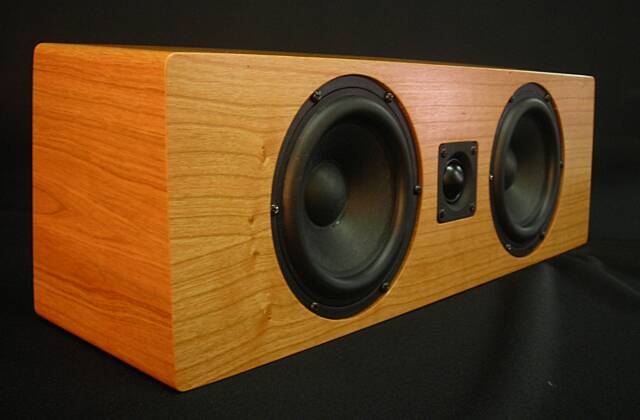

CC – 2 WC II on wall center channel is designed for high output and smooth response . A minimum phase crossover, coupled to dual cast frame 5” wool/carbon Quiet Cone™ mid woofers and 1" Neodym textile dome tweeter, provides exceptional clarity and dialogue intelligibility. An 11 deg. frontal incline allows for room optimum placement. A high density MDF enclosure, with 3/4” thick front baffle, provides resonance free performance with low coloration. SpecificationsSystem Design Dual 5 “ WTW Shielded Center Channel
Dual 5 “ WTW Shielded Center Channel Woofers(2) ea 5” Cast – Wool /Carbon Cone, Hi Temp V/C
(2) ea 5” Cast – Wool /Carbon Cone, Hi Temp V/CTweeter 1 ea -1" Silk Dome
1 ea -1" Silk DomeCrossover Differential 2 way, 2.0 Khz
Differential 2 way, 2.0 KhzSensitivity/ Impedance 89db/ 6 ohms
89db/ 6 ohmsPower Min/ Max 10 W – 220 W
10 W – 220 WFrequency Resp 55 hz to 20 khz
55 hz to 20 khzDimensions/ Wt 6.2” h x 20” w x 5 /4.25" d – 11 deg angle/ 16 lbs.
6.2” h x 20” w x 5 /4.25" d – 11 deg angle/ 16 lbs.Finishes Cherry, oak and custom colors
Cherry, oak and custom colorsSource Technologies 701 Nutmeg Road N., South Windsor, Conn. 06074, (860) 918 3088
