6.1 Monitor

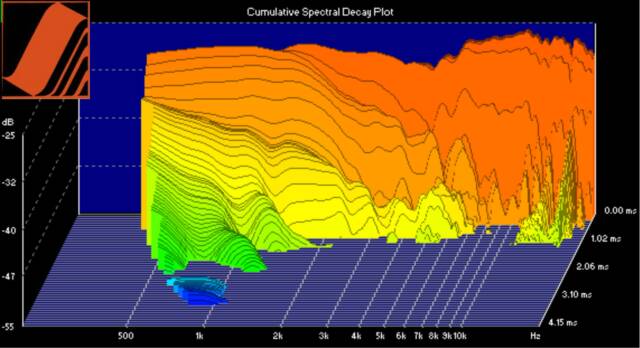

The 6.1 Monitor is compact bookshelf system designed for high resolution monitoring. Its uniform frequency response, coupled with fast decay, enables the 6.1 to resolve demanding program material with astonishing accuracy. Shallow form factor provides ease of placement.
SpecificationsSystem Design 2 sealed compact monitor bookshelf
2 sealed compact monitor bookshelf Woofer (1) 6” Cast Wool/Carbon with 1.7” long throw voice coil
(1) 6” Cast Wool/Carbon with 1.7” long throw voice coilTweeter 1” neodym silk dome
1” neodym silk domeCrossover1.7 khz. Minimum phase
1.7 khz. Minimum phaseFreq. Response 55 hz – 20 Khz
55 hz – 20 KhzSensitivity89 db @ 1 W 1 M
89 db @ 1 W 1 MPower Min – Max 20 W – 350 W
20 W – 350 WImpedance 6 ohms
6 ohmsSize, weight 11" h x 7" w x 4.7" d . 14 lbs ea.
11" h x 7" w x 4.7" d . 14 lbs ea.Available finishes Oak, Maple and Cherry., Black Ash
Oak, Maple and Cherry., Black AshSource Technologies , 701 Nutmeg Road N. South Windsor, CT. 06074 ( 860) 918 3088
